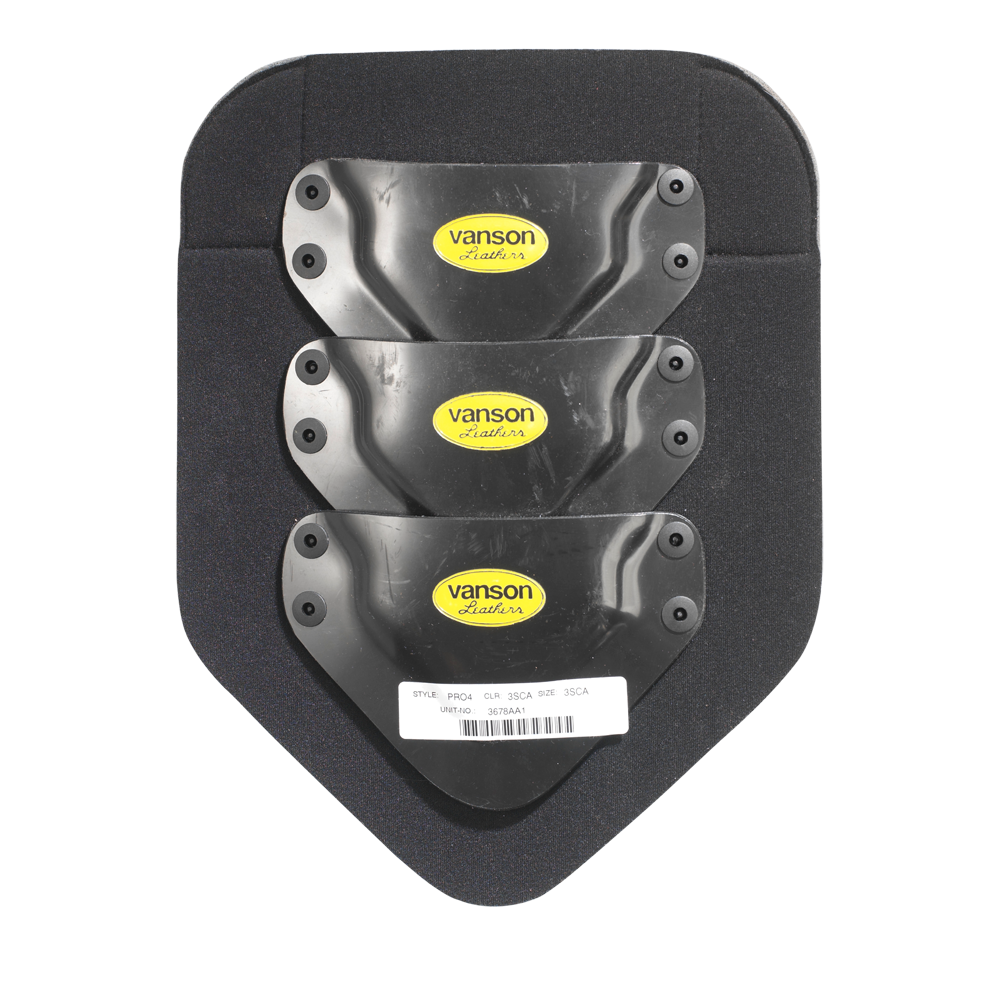

ARTICULATED SCALE BACKPAD
PRO4 NONE
Over-locking rivetted chips
- Hard scales back pad
- Back Pad MK2 - back protector attached inside lining
- Heavy molded plastic
- Molded nylon hardware
- Closed cell .25in foam - velcro compatible - cut to shape
ARTICULATED SCALE BACKPAD
US Patents 607274, 6260196 F.A.S. - Floating Armor System
Vanson builds a great backpad. We start with quarter inch closed-cell foam that has been laminated to Velcro-compatible tricot on both sides. This is cut to shape using our water jet. To that we rivet, using nylon medical rivets, custom molded HDPE (High Density Polyethylene) shapes that nest, one partially over the one above it, providing an uninterrupted yet flexible barrier of protection along the center of the backpad.
There are videos on our video page not only of the armor being built, but also of it in action and of a suit dissection to reveal the nature of the protection system.
- SPINE CHIP BACK PROTECTOR. Height is measured from top to tip of foam pad.
- SM..3 Scale...measures 14.50 high
- M...4 Scale...measures 17.75 high............Area protected by HDPE spine
- L...5 Scale...measures 21.00 high............chips is rougly 4in. less than
- XL..6 Scale...measures 24.50 high............pad height listed. About 2in.
- XXL.7 Scale...measures 27.75 high............of border at top and bottom.
